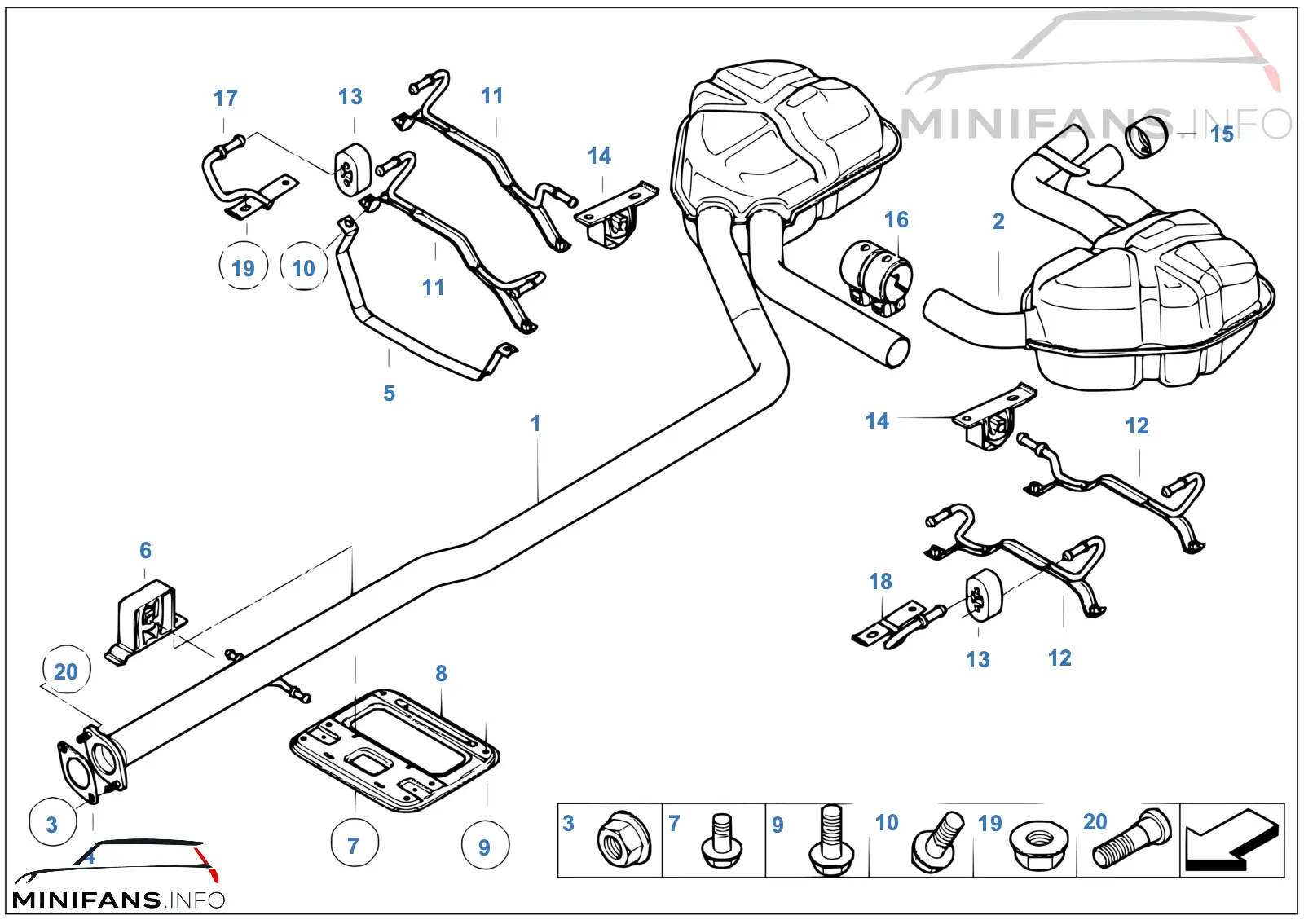

Exhaust system, rear

Mini Cooper S R52 Cabrio USA W11

Left-hand drive, Transmission: Neutral, February 2003
John Cooper Works Kit


BBCode

HTML

Supplement

Spare parts also apply to John Cooper Works except for John Cooper Works-specific components. further information see HG11 FG95 For mounting retainer, body side
further information see HG 41
# Description, Partnumber Supplement Date Quantity Weight USD
Rear muffler right with exhaust pipe
1
 i  18 10 7 547 170
1

11.8 kg

26 lb
Exhaust system, rear
+Info
For vehicles with

John Cooper Works Kit  Yes  S3ALA
1
 i  18 10 7 556 984
E

JCW

1
Center muffler
1
 i  18 20 7 545 127

JCW

1

4.1 kg

9 lb
$320.23
Sports rear silencer
+Info
For vehicles with

John Cooper Works Kit  Yes  S3ALA
2
 i  18 20 7 545 128

JCW

1

12.8 kg

28.2 lb
$501.30
Rear muffler left with rear pipes
+Info
For vehicles with

John Cooper Works Kit  No  S3ALA
2
 i  18 10 1 489 462
1

7.1 kg

15.6 lb
$323.88
Hex nut wiht flange
3
 i  07 13 0 757 758

M10

 2

12 g

0.42 oz
Flat gasket
4
 i  18 11 1 170 941
+Info
Required for repair
Quantity
3 Hex nut wiht flange
i
07 13 0 757 758
2
1

10 g

0.35 oz
$4.25
Clamp lower
5
 i  18 20 7 535 664
2

204 g

0.4 lb
$21.64
Rubber Mounting
6
 i  18 10 1 174 146
2

97 g

0.2 lb
$20.85
Hex bolt
7
 i  07 11 9 913 015

M6X16-8.8-ZNS

 2

6 g

0.21 oz
7
 i  18 20 7 550 888

M6X19-ZNS3

2

5 g

0.18 oz
Connecting support
8
 i  51 71 7 037 919
1

1.1 kg

2.5 lb
$113.49
Hexagon screw with flange
9
 i  41 00 7 058 312
6

13 g

0.46 oz
$2.14
Screw
10
 i  07 13 0 782 600
4

16 g

0.56 oz
Rubber mount
13
 i  18 20 7 535 665
2

78 g

0.2 lb
$7.64
Rubber Mounting
14
 i  18 20 7 521 427
2

99 g

0.2 lb
$20.85
Tailpipe tip, chrome
+Info
For vehicles with

John Cooper Works Kit  Yes  S3ALA
15
 i  18 10 7 556 986

JCW

 2

400 g

0.9 lb
$53.50
Tailpipe tip
+Info
For vehicles with

John Cooper Works Kit  No  S3ALA
15
 i  18 10 1 489 603
E
2

246 g

0.5 lb
$47.34
Tailpipe tip, chrome
15
 i  18 30 2 326 539

R52/3 COOPER S

 2

248 g

0.5 lb
$28.44
Muffler clamp
+Info
For vehicles with

John Cooper Works Kit  Yes  S3ALA
16
 i  18 10 7 573 865

JCW D=62,3MM

 1

204 g

0.4 lb
$21.64
Clamping bush
+Info
For vehicles with

John Cooper Works Kit  No  S3ALA
16
 i  18 30 7 536 425

D=63,5

1

411 g

0.9 lb
$16.29
Supporting bracket right
17
 i  18 20 1 493 797
1

168 g

0.4 lb
$23.52
Supporting bracket left
18
 i  18 20 1 493 798
1

168 g

0.4 lb
$43.51
Hex nut
19
 i  07 11 9 904 024

M8-ZNS3

 4

7 g

0.25 oz
Threaded bolt
20
 i  18 10 7 520 438
2

27 g

0.95 oz
$3.31
Exhaust manifold with catalyst
