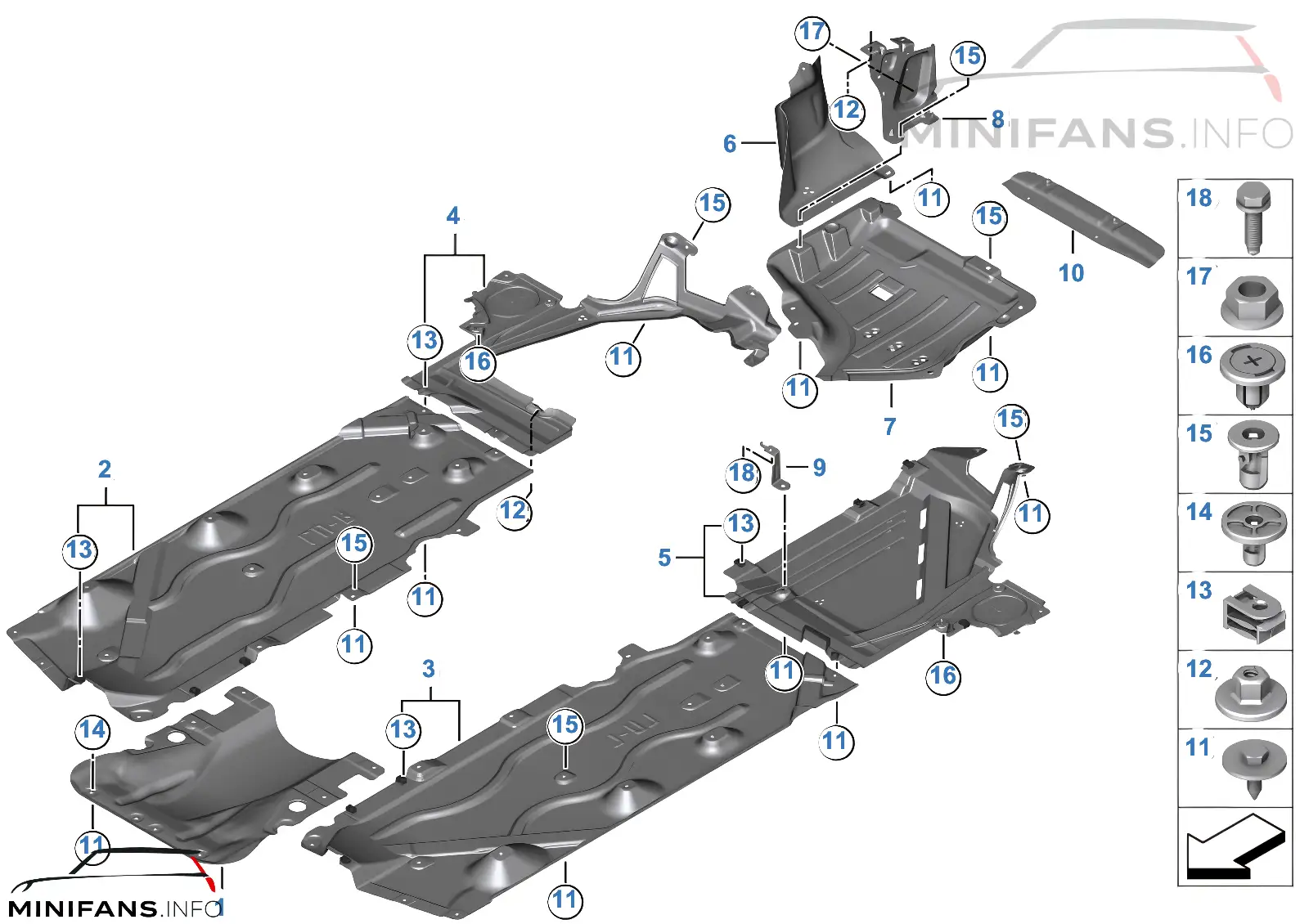

Underfloor coating

Mini One F60 Cm Europe B38

Steering undefined, Transmission: Neutral, June 2017
CO2 package


BBCode

HTML

# Description, Partnumber Supplement Date Quantity Weight USD
Underfloor coating center
+Info
For vehicles with

CO2 package  Yes  S1CBA
1
 i  51 75 7 444 032
1

411 g

0.9 lb
Underbody panelling, side on right
2
 i  51 75 7 290 804
1

838 g

1.8 lb
$40.18
Underbody panelling, side on left
3
 i  51 75 7 290 803
1

926 g

2 lb
$40.18
Undershield for tank, right
4
 i  51 75 7 386 952
1

495 g

1.1 lb
$30.01
Undershield for tank, left
5
 i  51 75 7 386 951
1

840 g

1.9 lb
$30.96
Holder, underbody paneling, tank
9
 i  51 75 7 400 890
1

36 g

1.27 oz
Hex bolt
11
 i  07 14 9 126 886

TS5X17 SW8 D=22

 52

6 g

0.21 oz
Plastic capnut with washer
12
 i  07 14 7 169 847

D=22MM

 11

1 g

0.04 oz
C-clip for plastic nut
13
 i  07 14 7 311 312

TS5

 17

3 g

0.11 oz
Expanding nut
14
 i  07 14 7 306 224

L= 19.9MM

 6

4 g

0.14 oz
Expanding nut
15
 i  07 14 7 201 307

L=18.4, DMAX=18

 17

1 g

0.04 oz
Expanding rivet
16
 i  07 13 0 702 966
2

1 g

0.04 oz
Hex bolt with washer
18
 i  07 11 9 906 246

M6X20-Z1

1

6 g

0.21 oz
Trim, windshield cowl, outer

← Trim, windshield cowl, outer
Underhood shield

Underhood shield →
