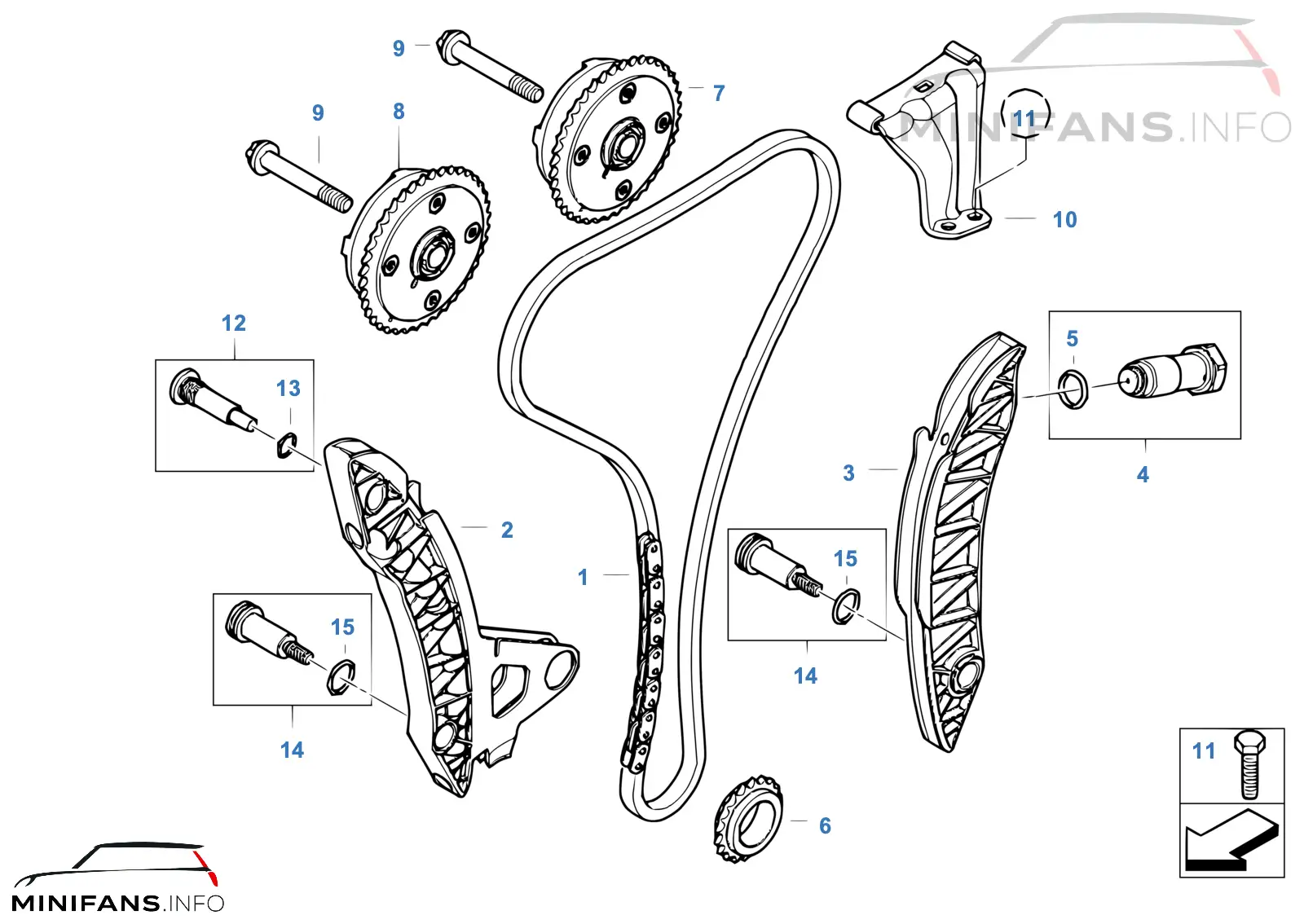

Timing and valve train-timing chain

Mini One R56 3-doors Europe N12

Steering undefined, Transmission: Neutral


BBCode

HTML

# Description, Partnumber Supplement Date Quantity Weight USD
Timing chain
1
 i  11 31 8 618 318
1

380 g

0.8 lb
$86.08
Guide rail
2
 i  11 31 7 577 301
1

133 g

0.3 lb
$26.55
Chain tensioner
3
 i  11 31 7 533 879
1

105 g

0.2 lb
$19.19
Chain tensioner
4
 i  11 31 7 607 551
1

150 g

0.3 lb
$47.52
Gasket ring
5
 i  11 31 7 631 972

A22X27

 1

1 g

0.04 oz
$2.20
Sprocket
6
 i  11 21 7 588 996
1

82 g

0.2 lb
$16.97
Adjustment unit, inlet camshaft
7
 i  11 36 7 545 862
1

859 g

1.9 lb
$327.01
Adjustment unit, outlet camshaft
8
 i  11 36 7 536 085
1

895 g

2 lb
$327.01
Torx bolt
9
 i  11 36 7 536 087

M10X1X52

 2

49 g

0.1 lb
$3.25
Slide rail
10
 i  11 31 7 577 631
1

48 g

0.1 lb
$26.55
Hex bolt
11
 i  11 31 7 542 856

M6X20

2

7 g

0.25 oz
$0.60
Bolt
12
 i  11 31 7 534 771
1

45 g

0.1 lb
$10.78
Gasket ring
13
 i  11 31 7 550 461

A14X21

1

1 g

0.04 oz
$0.67
Bolt
14
 i  11 31 7 534 768
2

65 g

0.1 lb
$13.65
O-ring
15
 i  11 31 7 534 770

18,3X2,4

2

1 g

0.04 oz
$2.77
Flywheel automatic

← Flywheel automatic
Valve timing gear, eccentric shaft

Valve timing gear, eccentric shaft →
