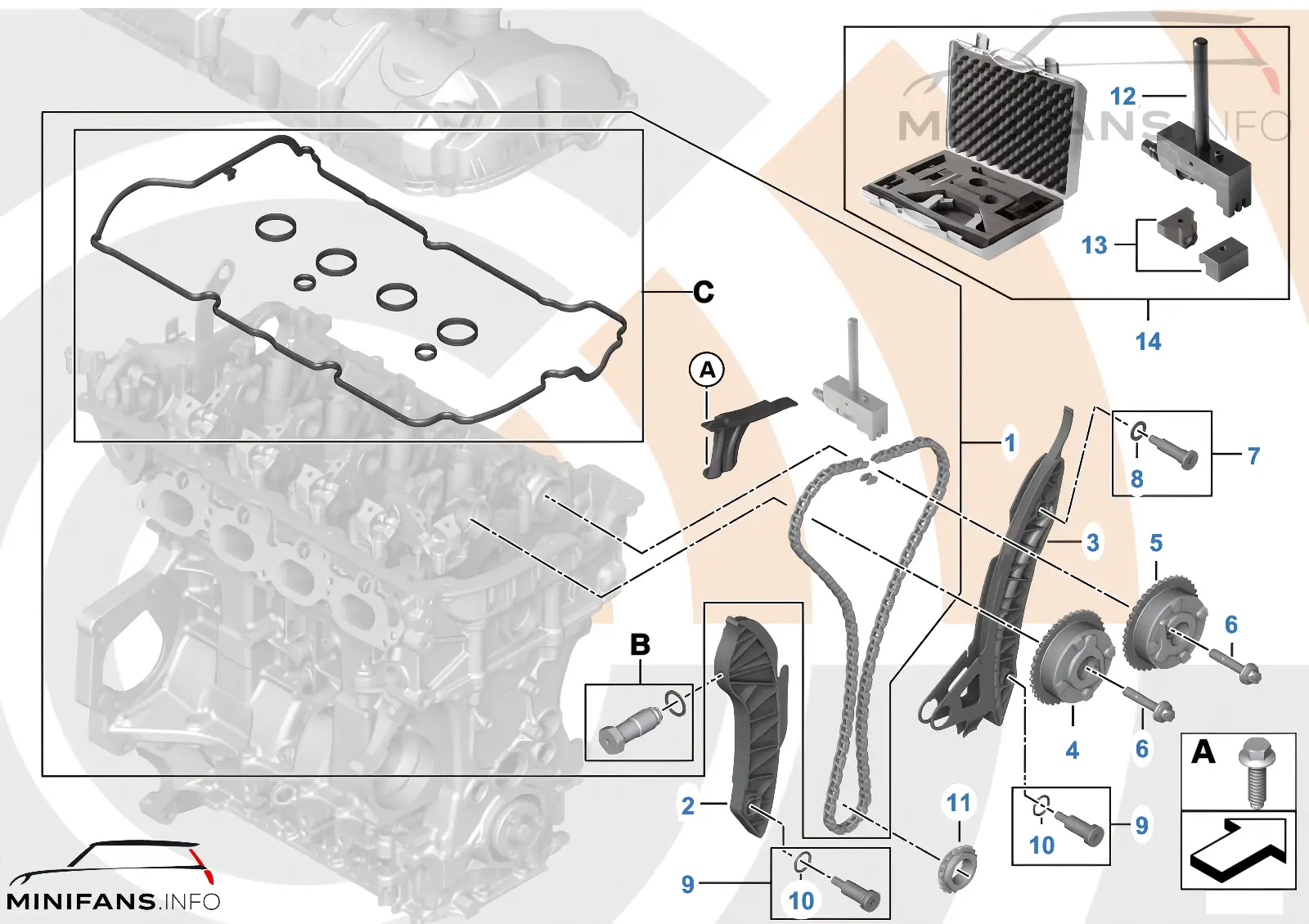

Repair kit, exposed timing chain, top

Mini Cooper R57N Cabrio USA N16

Left-hand drive, Transmission: Neutral


BBCode

HTML

# Description, Partnumber Supplement Date Quantity Weight USD
Repair kit, exposed timing chain, top
+Info
Vital instructions - Compliance mandatory! Repair instructions REP-11 31 549
1
 i  11 31 2 448 930
+Info
Special tools required! Only together with Positions 12 and 13 Engine oil change is required!

VALUE LINE

 1

652 g

1.4 lb
$78.17
Guide rail
2
 i  11 31 7 577 301
1

133 g

0.3 lb
$26.55
Chain tensioner
3
 i  11 31 7 533 879
1

105 g

0.2 lb
$19.19
Adjustment unit, inlet camshaft
4
 i  11 36 7 545 862
1

859 g

1.9 lb
$327.01
Adjustment unit, outlet camshaft
5
 i  11 36 7 536 085
1

895 g

2 lb
$327.01
Torx bolt
6
 i  11 36 7 536 087

M10X1X52

 2

49 g

0.1 lb
$3.25
Bolt
7
 i  11 31 7 534 771
1

45 g

0.1 lb
$10.78
Gasket ring
8
 i  11 31 7 550 461

A14X21

1

1 g

0.04 oz
$0.67
Bolt
9
 i  11 31 7 534 768
2

65 g

0.1 lb
$13.65
O-ring
10
 i  11 31 7 534 770

18,3X2,4

2

1 g

0.04 oz
$2.77
Sprocket
11
 i  11 21 7 588 996
1

82 g

0.2 lb
$16.97
Basic body
12
 i  83 30 2 354 962
1

940 g

2.1 lb
12
 i  83 30 2 354 983
1

854 g

1.9 lb
Female die
13
 i  83 30 2 354 976
1

134 g

0.3 lb
Nietwerkzeug
13
 i  83 30 2 354 981
1

755 g

1.7 lb
Spindle
13
 i  83 30 2 354 984
1

177 g

0.4 lb
Riveting tool set
14
 i  83 30 2 354 985
1

2.7 kg

5.9 lb
Valve timing gear, camshaft, outlet

← Valve timing gear, camshaft, outlet
Lubrication system/Oil pump with drive

Lubrication system/Oil pump with drive →
